| Dimensions | Model Name | NVX II 170CC |
| Length x Width x Height(mm) | 1940 x 710 x 1120 | |
| Wheel Base(mm) | 1355 | |
| Overall Mass | 111 kgs | |
| Front Suspension | Telescope | |
| Rear Suspension | Hydraulic | |
| Front/Rear Rim Material | Aluminum/ Aluminum | |
| Front Tire Dimensions | 100/80-14 | |
| Rear Tire Dimensions | 120/70-14 | |
| Front Brakes Type | Disc | |
| Rear Brakes Type | Drum | |
| Fuel Capacity | 8.6L | |
| Seat Height(mm) | 790 | |
| Power System | Engine Type/Cylinder | 4 Stroke, 2 Valve, single cylinder |
| Compression Ratio | 9.6 ：1 | |
| Bore&Stroke(mm) | 61 x 57.8 | |
| Displacement | 168.8cc | |
| Fuel System | Carburetor | |
| Max. Power | 9.0kW/7000rpm | |
| Max. Torque | 13N.m/6000rpm | |
| Max. Speed | 95km/h | |
| Cooling System | air-cooling | |
| Transmission | CVT | |
| Starting System | Electric |

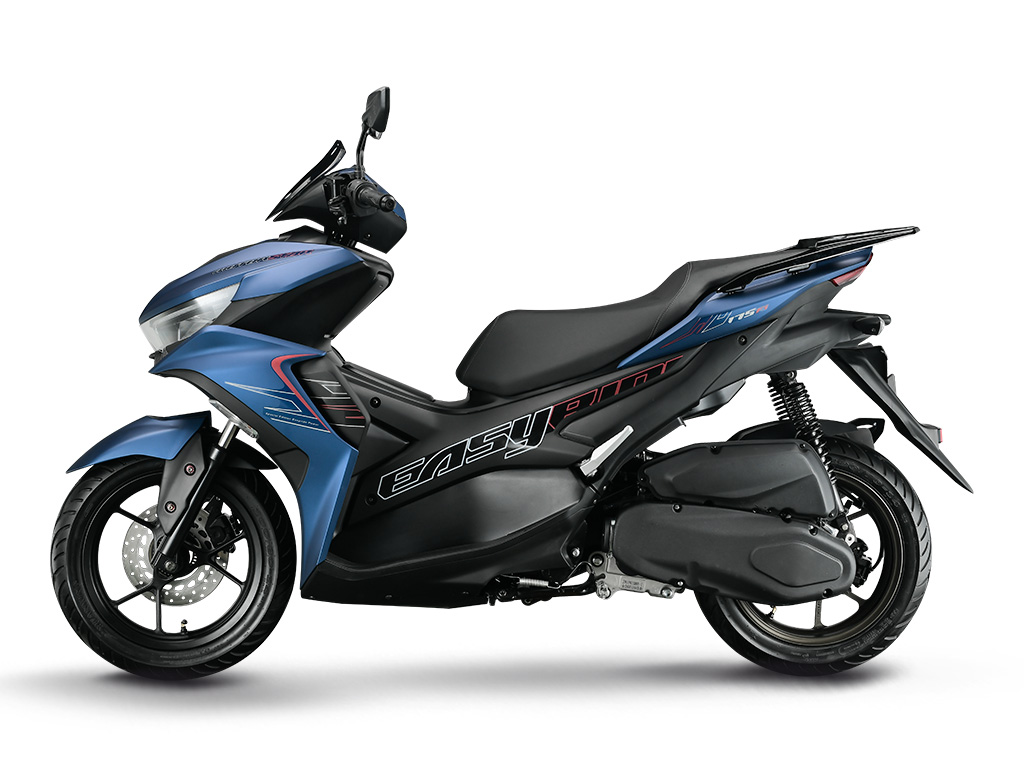

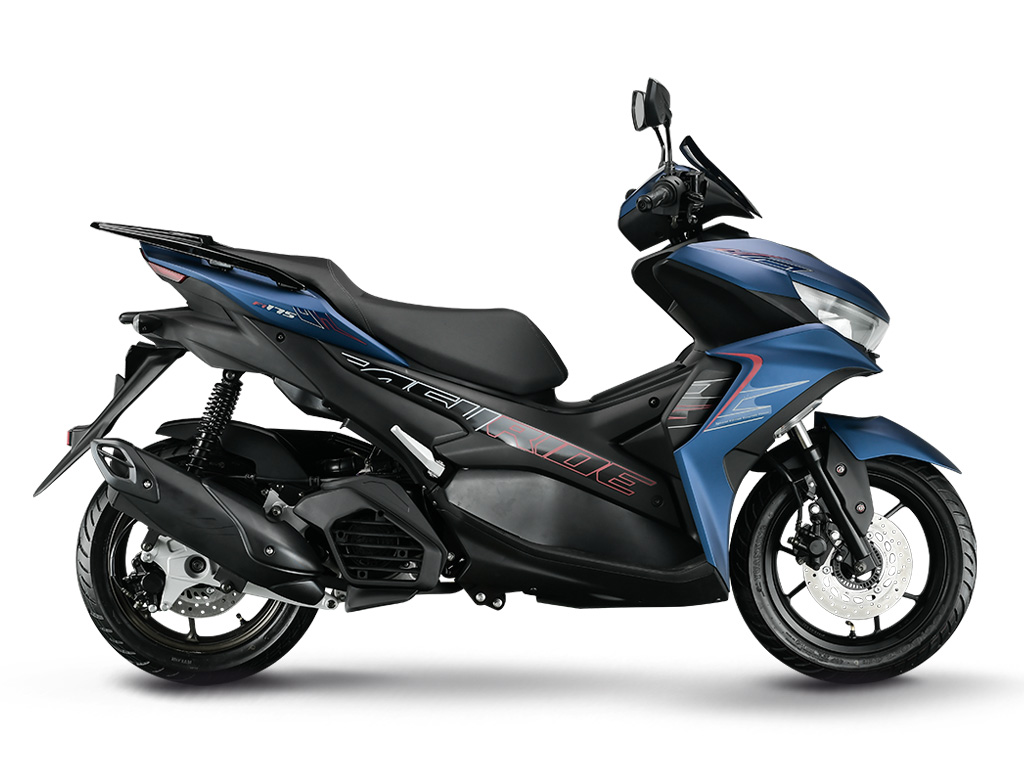

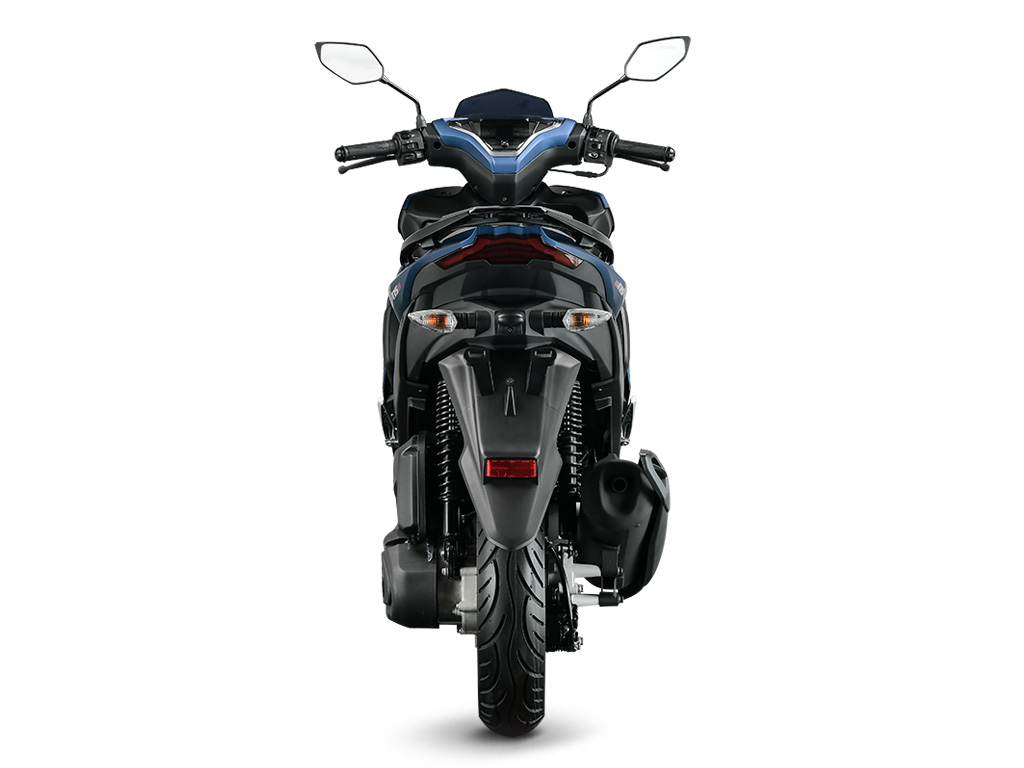

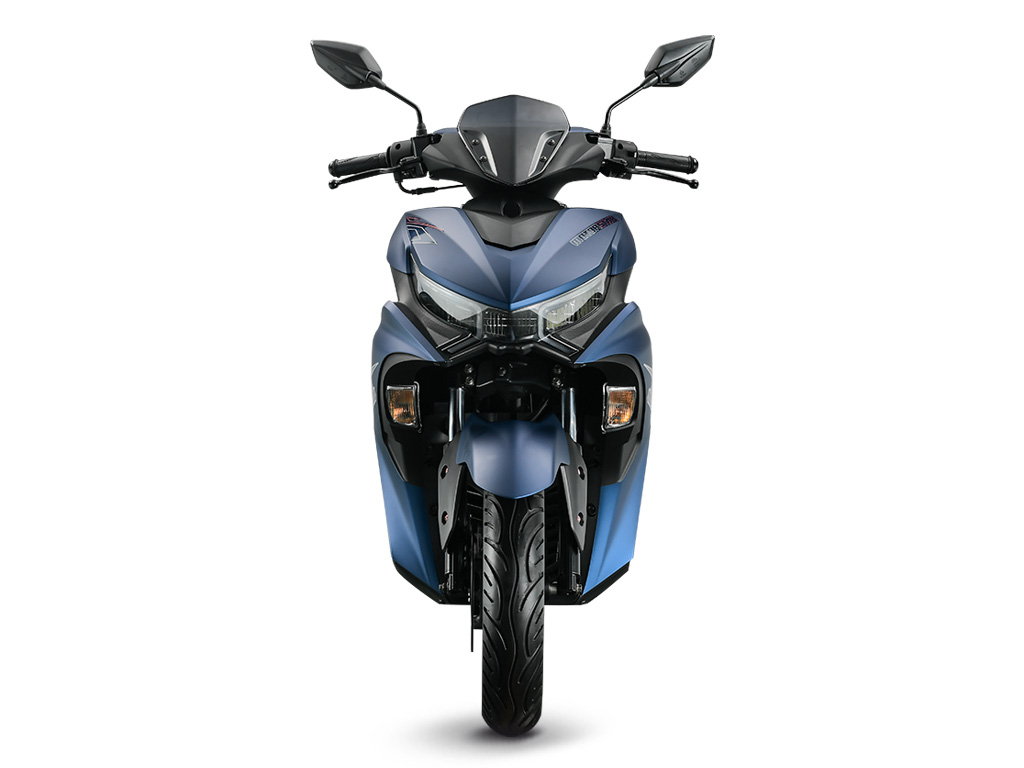

NVX II
MAXI SCOOTER WITH 14 INCH TIRE, BIG FUEL TANK.
